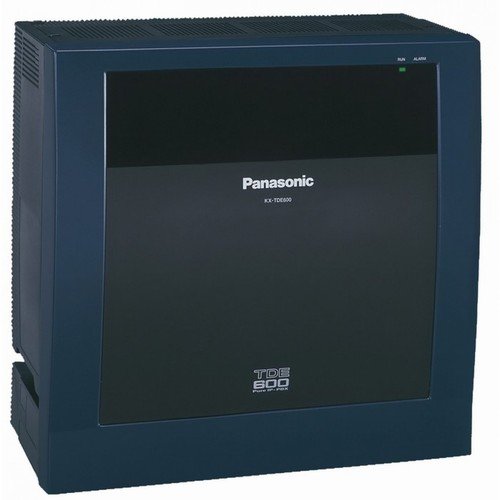

Panasonic TDE600

Category:

Description

The KX-TDE600 OneNet Pure IP PBX is an advanced corporate communication systems providing IP telephony features and functionalities over both local and broadband IP networks.

Empowered with the latest SIP technology and packed with extensive productivity applications, the KX-TDE600 OneNet IP-PBX.

Is designed for a medium to large business up to 1100 users.

The Panasonic KX-TDE600 OneNet builds on the “Pure IP PBX” converged model as in KX-TDE100 / 200 OneNet.

As an advanced communication platforms for IP networking Environments, Supporting network as well as desktop SIP connectivity, the convergence ready KX-TDE OneNet products support a range of advanced IP telephones as well as digital extensions and ISDN trunks.

Built as a business application environment and bundled with important business telephony applications – the KX-TDE OneNet systems can easily address your business communication needs well into the 21st Century. Targeting Medium to Large businesses, single site or multiple offices, the TDE600 OneNet is a welcome member to the family to support customer needs.

Panasonic KX-TDE600 Features

The KX-TDE600’s modular design lets you expand the system as your needs evolve.
The Basic Shelf provides a maximum of 160 ports (288 ports with Digital eXtra Device Port [DXDP]). Plus with the KX-TDE600’s free slot architecture, you can easily insert expansion cards and access new features as well as expand your capabilities. This expandability means you can enhance system capabilities and features to meet your changing needs, without having to purchase a new system.



Panasonic KX-TDE600 Specifics

  • Max CO Lines: 640
  • Max Analog CO’s: 640
  • Max VoIP (H.323) trunks: 32
  • Max VoIP (SIP) trunks: 64
  • Max Total Extensions: 992 (1152 with DXDP)*
    *Even when Digital XDP is used, each shelf supports a maximum of 256 KX-DT300/KX-T7600 series
  • Max Analog Proprietary Extensions: 320
  • Max Single Line Telephones : 960
  • Max Digital Proprietary extensions: 640 (DT300, T7600 series)
  • Max IP Proprietary Phone extensions: 704
  • Max SIP extensions: 128
  • Multi-Cell Wireless Compatible: Yes
  • Maximum Cell Stations (Antennas): 128
  • Maximum Portable Handsets: 512
  • Direct Station Select (DSS) Consoles: 64
  • Dimensions (H x W x D): 16.3″ x 16.9″ x 10.6″ (per shelf)
  • Weight: under 35 lbs (per shelf)

KXTDE_User_Manual-100_200_600

TDE600
